XINTRA LABS - VirusViper Writeup

company specialising in the production of synthetic partners™.
They rely on an MSSP company called VirusVipers for all
their security managed services where access is handled through a VPN.
Around October 2023, SyntheticPartners was alerted by
VirusVipers that the MSSP had suffered an internal breach
by APT10 leading to access of several of their clients networks.
RPD Connection
Question 1 - Can you identify the timestamp of the suspicious RDP connection SyntheticPartners mentioned?
Connection found in the winevent logs:
1
C:\Labs\Evidence\VirusVipers\TriageImages\2023-10-16T070418_Evidence-SP-PC-01\C\Windows\System32\winevt\logs\Security
Query the security logs to find RDP connections with logon type 10 (Interactive Logon):
1
2
3
4
5
<QueryList>
<Query Id="0" Path="file://C:\Labs\Evidence\VirusVipers\TriageImages\2023-10-16T070418_Evidence-SP-PC-01\C\Windows\System32\winevt\logs\Security.evtx">
<Select Path="file://C:\Labs\Evidence\VirusVipers\TriageImages\2023-10-16T070418_Evidence-SP-PC-01\C\Windows\System32\winevt\logs\Security.evtx">*[System[(EventID=4624) and TimeCreated[@SystemTime>='2023-10-14T00:00:00.000Z' and @SystemTime<='2023-10-14T23:30:00.999Z']]] and *[EventData[Data[@Name='LogonType'] = '10']]</Select>
</Query>
</QueryList>

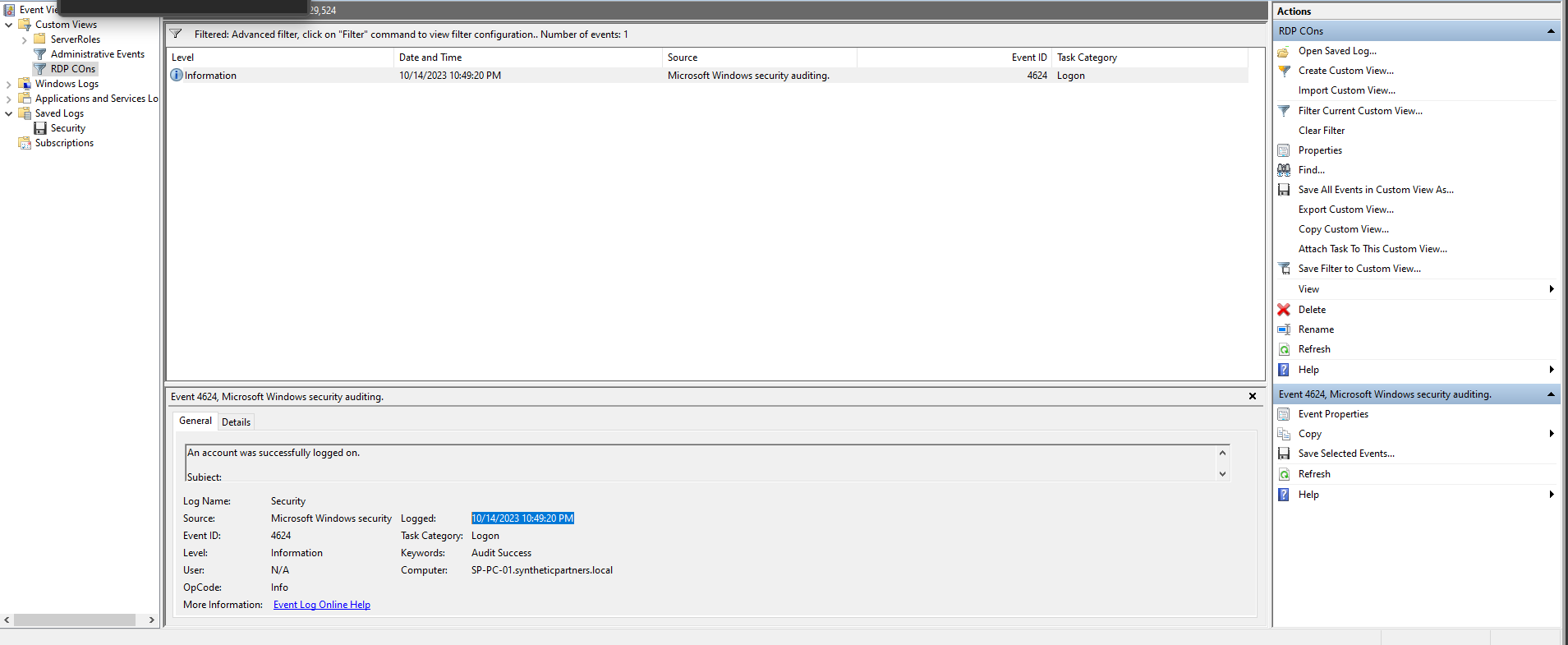

A single event:
TargetDomainName synpartners
TargetUserName andy.s
10/14/2023 10:49:20 PM
Solution
Spoiler warning
2023-10-14 22:49:20SQuestion 2 - What was the source IP address of this specific RDP connection?
Solution
Spoiler warning
10.0.3.2 (Found in the same log)Patient 0
Question 3 - What was the patient zero host in this incident?
To begin, knowing that the machines have Microsoft Defender, I searched for all detections for the two Virus Viper machines.

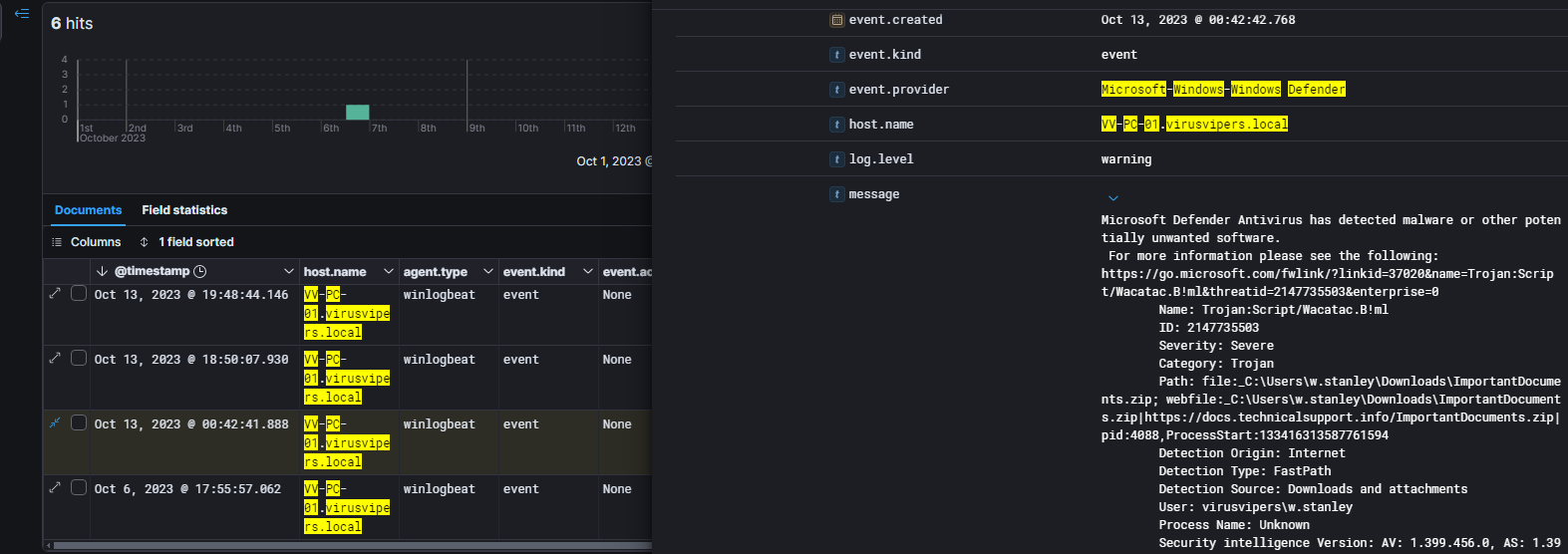

And among all, the most interesting one is definitely detected on VV-PC-01:
Microsoft defender appears to have considered ImportantDocuments.zip as a trojan
file: C:\Users\w.stanley\Downloads\ImportantDocuments.zip webfile: C:\Users\w.stanley\Downloads\ImportantDocuments.zip https://docs.technicalsupport.info/ImportantDocuments.zip pid:4088,ProcessStart:133416313587761594
Solution
Spoiler warning
VV-PC-01Question 4 - What was the patient zero account in this incident?
Solution
Spoiler warning
virusvipers\w.stanley (In the same log)Delivering Payload
Question 5 - What IP was the patient zero account using when they were visiting the Exchange OWA portal?

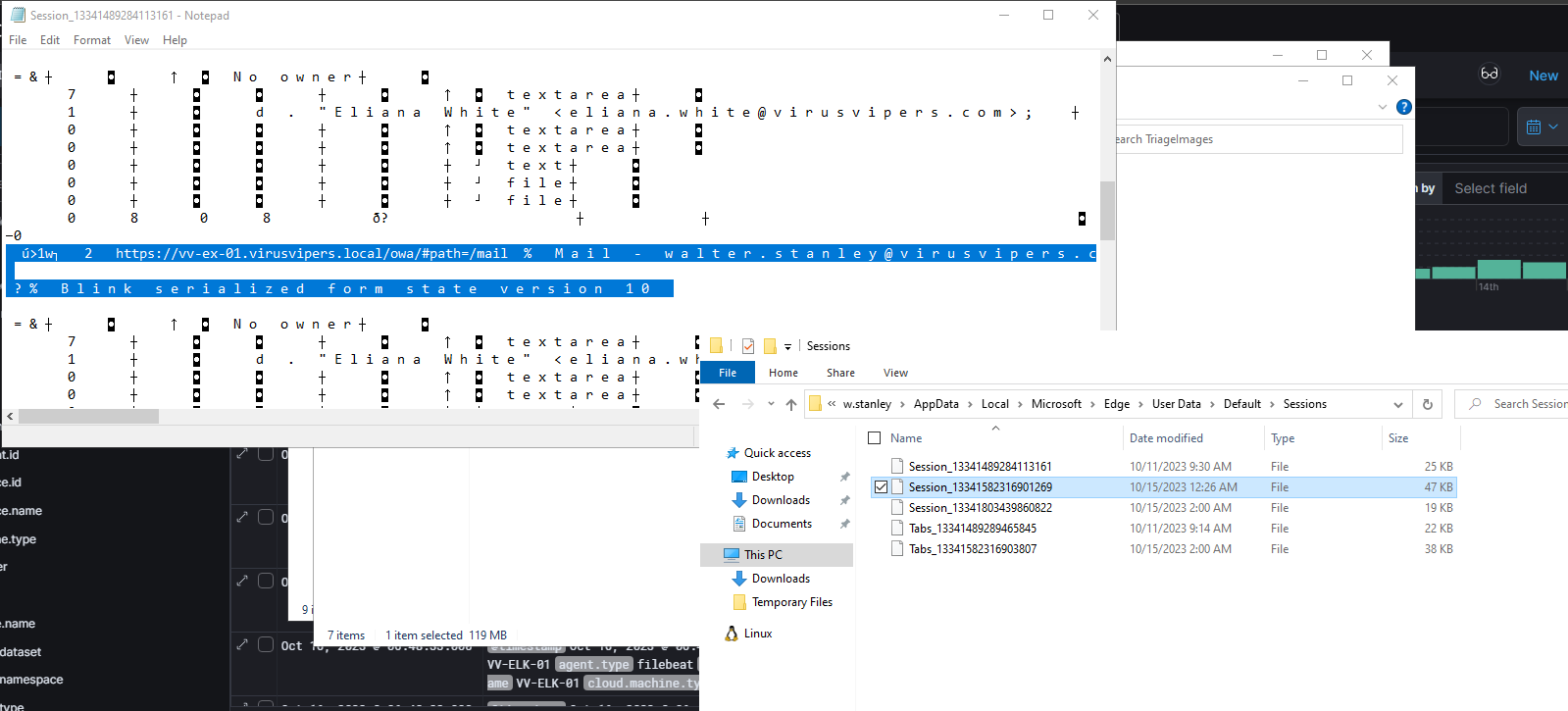

In the Edge sessions I found the email and the path of the OWA application and w.stanley’s email:
http://10.1.0.4/owa (VV-EX-01)
This discovery can make us answer the nex questioons
Solution
Spoiler warning
10.1.0.6Question 6 - What user agent was the patient zero account using when they were visiting the Exchange OWA?

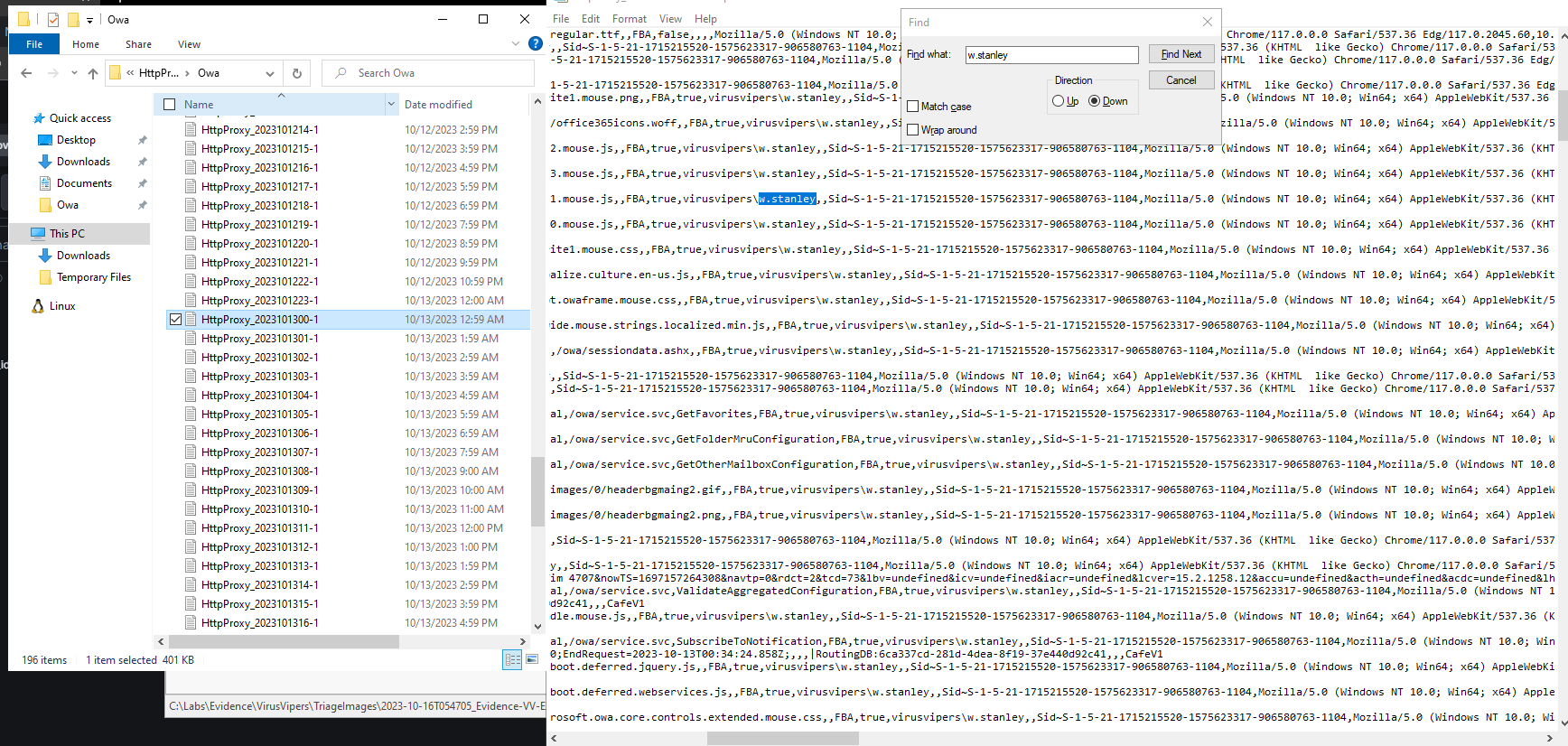

To find the user agent, we can retrieve the data directly from the VV-EX-01 Exchange machine
Solution
Spoiler warning
Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML like Gecko) Chrome/117.0.0.0 Safari/537.36 Edg/117.0.2045.60Question 7 - What is the email address of the threat actor?
To answer this question, we can use Stellar Repair for Exchange to open the mail db in the Exchange server:
Path:
1
C:\Labs\Evidence\VirusVipers\TriageImages\2023-10-16T054705_Evidence-VV-EX-01\C\Program Files\Microsoft\Exchange Server\V15\Mailbox\Mailbox Database 0132633920\Mailbox Database 0132633920.edb

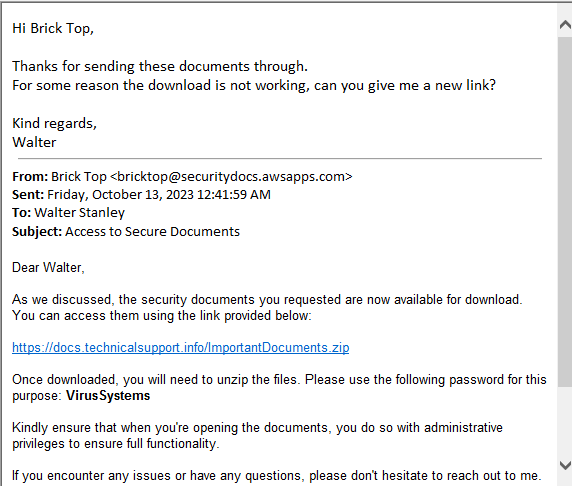

And here is the first email that generated the first Defender alert:
Solution
Spoiler warning
bricktop@securitydocs.awsapps.comQuestion 8 - What threat name did Windows Defender classify the item that the patient zero account first downloaded?
This can be retrieved from the log in question 3
Solution
Spoiler warning
Trojan:Script/Wacatac.B!mlQuestion 9 - What date was the domain registered which hosted the initial payloads?
For this we can just put docs.technicalsupport.info on Whois and look at the registration date
Solution
Spoiler warning
2023-10-06Question 10 - What was the password of the second zip file?
Solution
Spoiler warning
VirusSystems (Found in the user inbox see Question 7)Infection Time
Question 11 - What is the name of the batch script that the victim ran to initiate the infection?
To find this, it is necessary to discover the contents of ImportantDocumentsV2.zip.

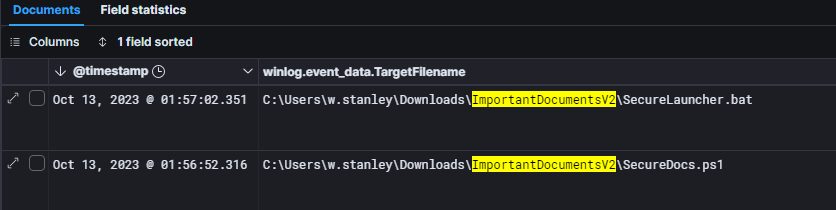

To do this, we look for “File created” events involving ImportantDocumentsV2
And here we find the files we are interested in and the batch script referred to in the question:
Solution
Spoiler warning
SecureLauncher.batQuestion 12 - What is the “key” that is provided to the malicious PowerShell script?
To answer this, we can look at the logs of the commands executed by PowerShell on the machine:

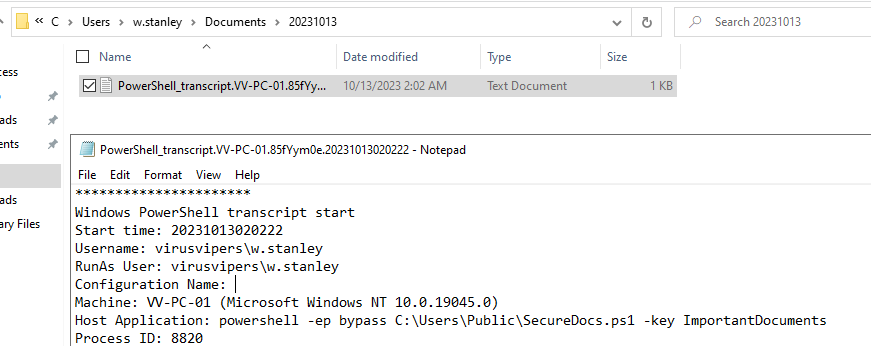

Or in the PowerShell logs present in the user’s Documents folder:
Or, of course, directly in the logs by searching for SecureDocs.ps1 activities:
Solution
Spoiler warning
ImportantDocumentsQuestion 13 - What was the malicious domain the PowerShell process attempted to connect to?

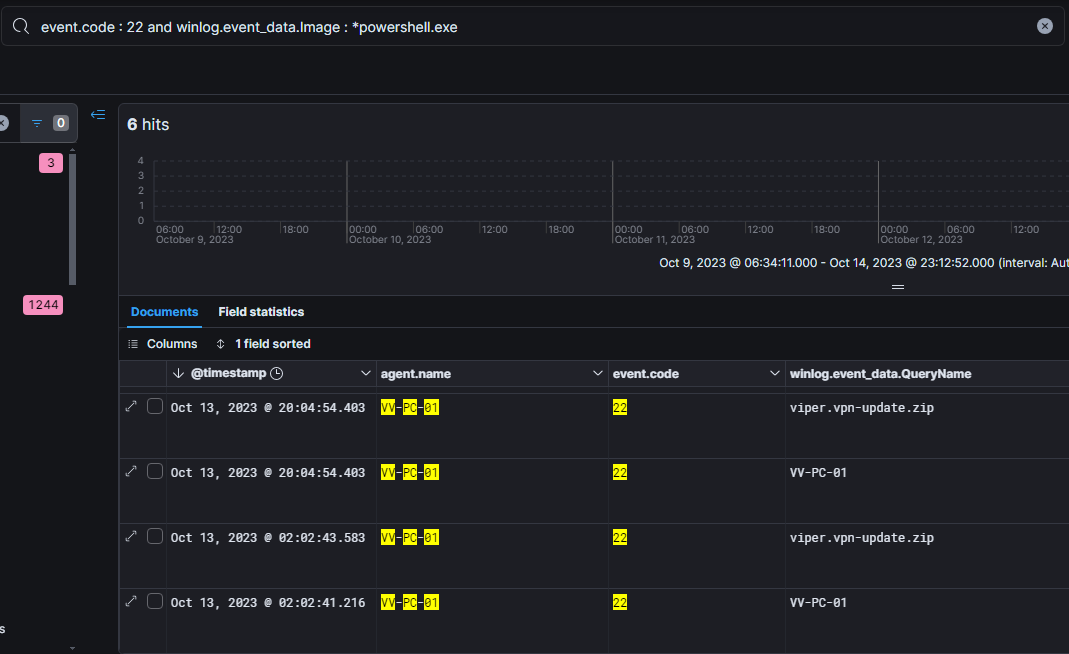

To find the answer to this question, we can look for event code 22 related to DNS request registrations and link them to powershell.exe processes:
We can confirm the domain by analyzing SecureDocs.ps1 more closely, where a huge base64 blob is followed by:
1
2
3
$d = xd $key $e
$a = [System.Convert]::FromBase64String($d) [System.Reflection.Assembly]::Load($a) | Out-Null
[ImportantDocs.Program]::Main()
The fact that it is loading an Assembly in memory and calling the Main() of ImportantDocs makes it clear that we are dealing with a .NET application
To learn more about the file dropped by the ps1, I made it so that instead of being executed, it was written to a file by changing the final part:
1
2
3
4
$path = "C:\Temp\ImportantDocs.exe";
New-Item -ItemType Directory -Force -Path (Split-Path $path);
$d = xd $key $e; $a = [System.Convert]::FromBase64String($d);
[System.IO.File]::WriteAllBytes($path, $a)
And here we find the following hash:
1
B5E81B97F8C874D4843CDE448CC15BFE552807113A11301A36AD3FF32517D8CB

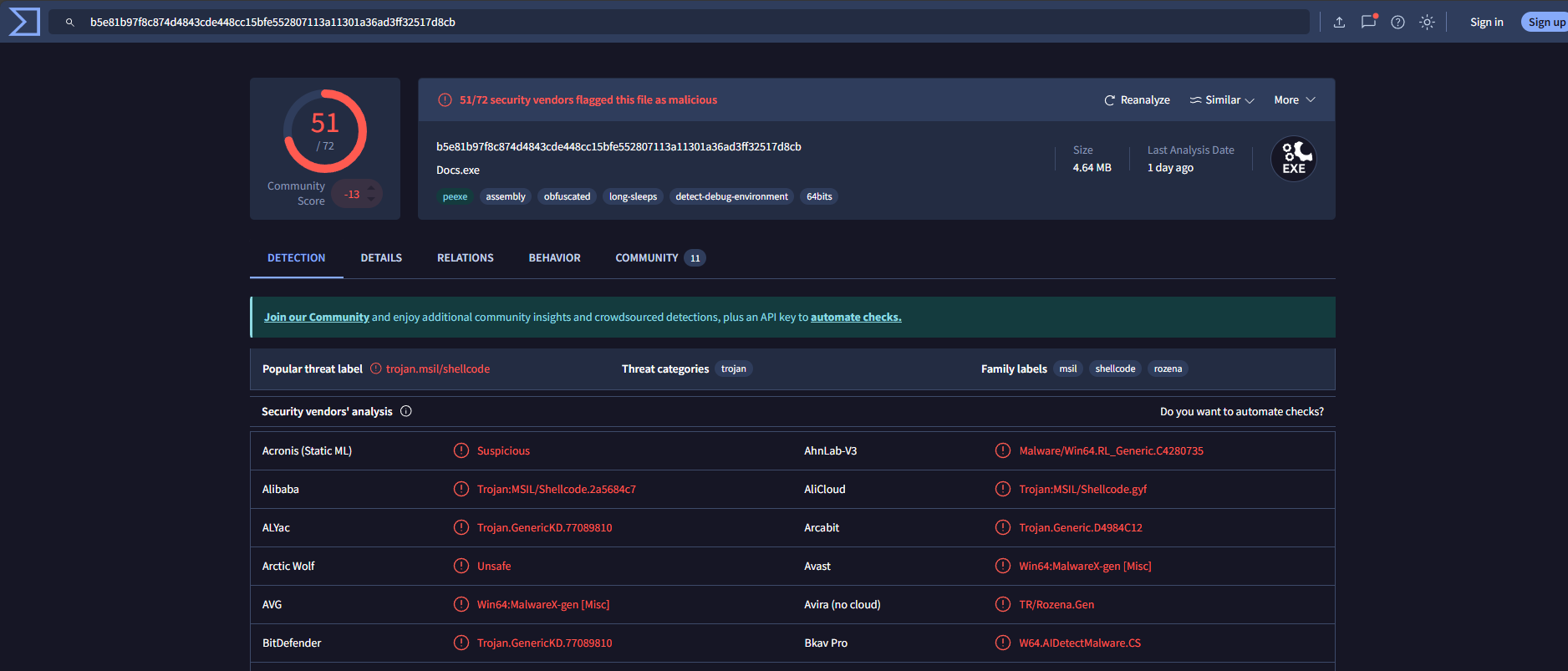

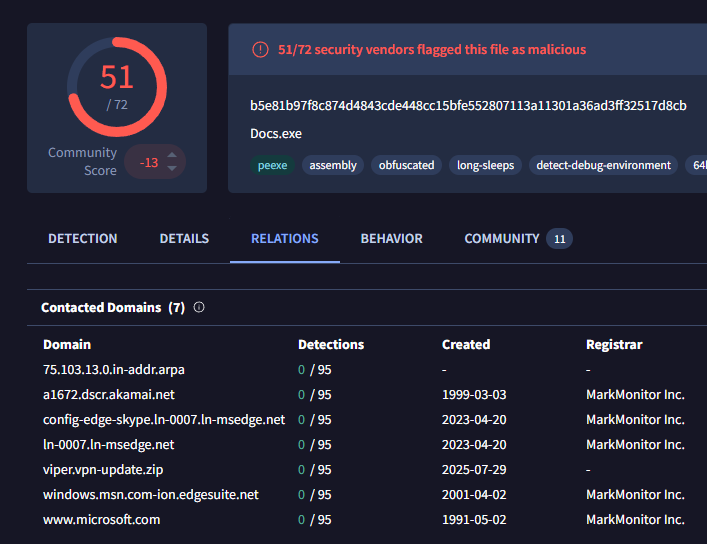

From what VirusTotal shows, we can therefore trace the file back to donut loader.
If we check the details, we can find the same domain that we saw in the logs:
Solution
Spoiler warning
viper.vpn-update.zipQuestion 14 - What is the PID of the process that first made connect to the malicious C2 on the patient zero host?
We can simply retrieve the PID from the log.
Solution
Spoiler warning
8820Question 15 - What was the original file name of the encrypted payload embedded in the .ps1 script?
To answer this, we can refer to the analysis done for question 13.
The name can be found on VirusTotal.
Solution
Spoiler warning
Docs.exeQuestion 16 - Identify the key (in UTF8) in the .NET binary that is used to decrypt the payload from the previous question

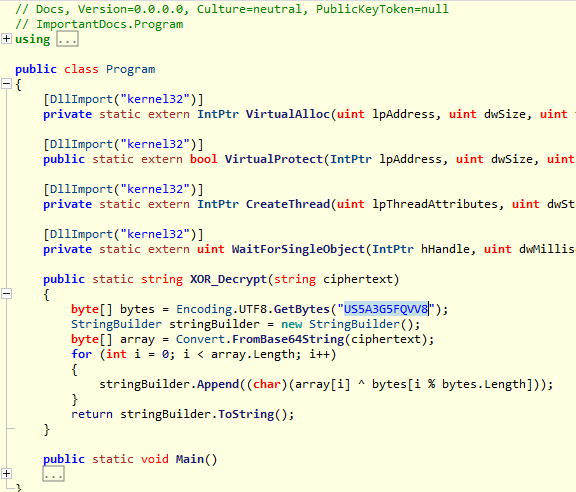

To answer this, we can use the ILSpy tool since our file is a .NET, and here is the key:
Spoiler warning
US5A3G5FQVV8Question 17 - What is the full path of the process the initial payload spawned and then injected itself into?
Looking at the code with ILSpy, we can again notice a base64 blob on which self-injection is performed with CreateThread:
1
2
3
4
5
6
7
8
9
10
string s = XOR_Decrypt(ciphertext);
byte[] array = Convert.FromBase64String(s);
IntPtr intPtr = VirtualAlloc(0u, (uint)array.Length, 12288u, 4u);
Marshal.Copy(array, 0, intPtr, array.Length);
IntPtr zero = IntPtr.Zero;
uint lpThreadId = 0u;
IntPtr zero2 = IntPtr.Zero;
VirtualProtect(intPtr, (uint)array.Length, 32u, out var _);
zero = CreateThread(0u, 0u, intPtr, zero2, 0u, ref lpThreadId);
WaitForSingleObject(zero, uint.MaxValue);
This information allows us to answer the question because, having discovered the PID of the PowerShell script, we just need to set it as ParentProcessId to find out where the new thread was actually spawned.
Solution
Spoiler warning
C:\Windows\System32\rundll32.exeQuestion 18 - If the inital payload was a PowerShell script, what processes did that spawn?
To answer this question again we just have to look at the PID of Rundll32.exe
